EUROPRIMILA 1500
WINE PRESS PRIMULA HL 15
The Europrimula 1500 pneumatic press is made of AISI 304 stainless steel with a 80x80x2 tube frame, 2 mm thick AISI 304 metal grille perforated on 270° with 1.5x20 oblong holes, 16x50 pitch, reinforced hatch sizes 400x600 with external sliding door, axial load passage d. 90 mm 3" 1/2 stainless steel valve garolla connector 100, stainless steel control panel with PLC programming, selector with 7 customised work programs for each type of grape and load program
BECKER carbon blade compressor with 1.75 Kw, pneumatic system with 3/4” solenoid valves and silencers to reduce noise, BONFIGLIOLI geared motor with 0.75 Kw self-braking motor, transmission with pinion-crown and chain, safety systems for pressure, vacuum and movement control, squeezing membrane in fabric covered with neutral rubber on the inside and food-graded in the part in contact with the grapes, movement wheels, 250 l stainless steel must collection tank with 1” 1/4 valve garolla fitting 40.
Press testing: TUV Rheinland Italia Srl
CE certification
TECHNICAL DATA:
length mt. 2,3
width mt. 1,3
height mt. 1,45
empty weight kg. 560
number of cargo loading doors 1
cargo loading doors dimensions mt. 0,6x0,4
load capacity: fresh pressed q. 20 / crushed and drained q. 30

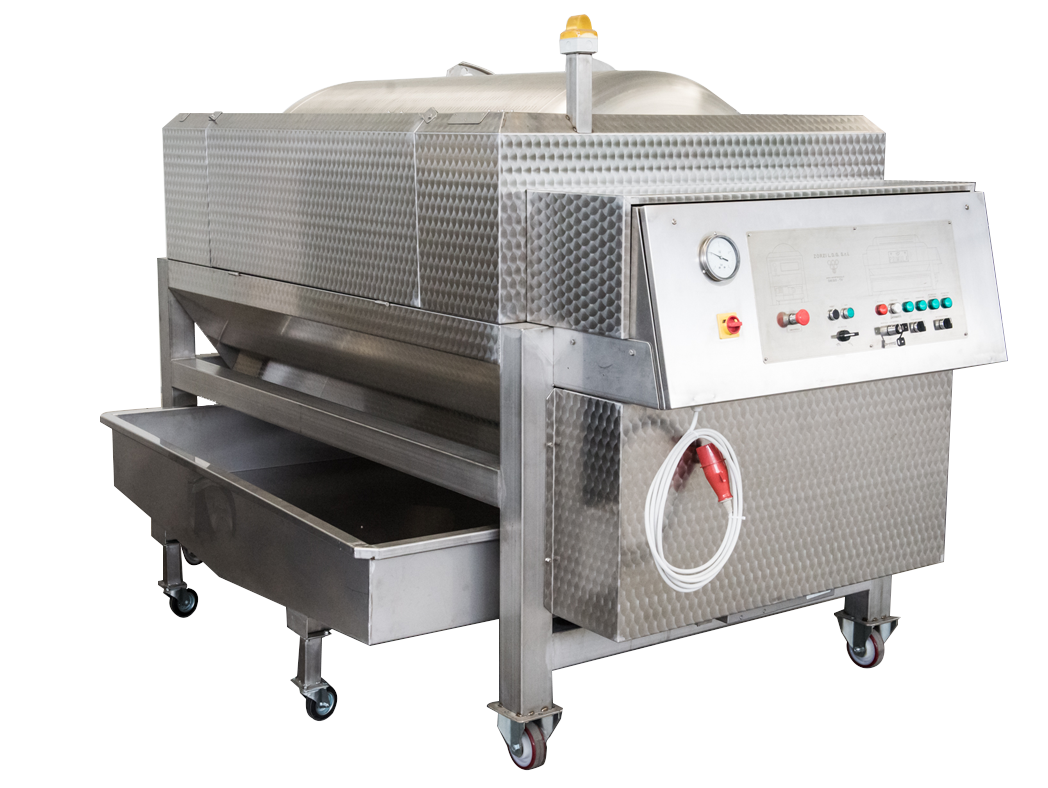

PRIMULA 1750
WINE PRESS PRIMULA HL 17,5
The Europrimula 1750 pneumatic press is made of AISI 304 stainless steel with a 120x120x3 tube frame, 2 mm thick AISI 304 metal grille perforated on 270° with 1.2x20 oblong holes, 16x50 pitch, reinforced hatch sizes 400x600 with external sliding door, axial load passage d. 90 mm 3" 1/2 stainless steel valve garolla connector 100, stainless steel control panel with PLC programming, selector with 7 customised work programs for each type of grape and load program
BECKER carbon blade compressor with 3 Kw, pneumatic system with 1” solenoid valves and silencers to reduce noise, BONFIGLIOLI geared motor with 1.1 Kw self-braking motor, transmission with pinion-crown and chain, safety systems for pressure, vacuum and movement control, squeezing membrane in fabric covered with neutral rubber on the inside and food-graded in the part in contact with the grapes, movement wheels, 700 l stainless steel must collection tank with 1” 1/2 valve garolla fitting 50.
Press testing: TUV Rheinland Italia Srl
CE certification
TECHNICAL DATA:
length mt. 3,1
width mt. 1,4
height mt. 1,7
empty weight kg. 800
number of cargo loading doors 1
cargo loading doors dimensions mt. 0,6x0,4
load capacity: fresh pressed q. 30 / crushed and drained q. 40
PRIMULA 2700
WINE PRESS PRIMULA HL 27
The Europrimula 2700 pneumatic press is made of AISI 304 stainless steel with a 120x120x3 tube frame, 2 mm thick AISI 304 metal grille perforated on 270° with 1.5x20 oblong holes, 16x50 pitch, no.2 reinforced hatch sizes 400x600 with external sliding door, axial load passage d. 90 mm 3" 1/2 stainless steel valve garolla connector 100, stainless steel control panel with PLC programming, selector with 7 customised work programs for each type of grape and load program
BECKER carbon blade compressor with 4 Kw, pneumatic system with 1” solenoid valves and silencers to reduce noise, BONFIGLIOLI geared motor with 1.1 Kw self-braking motor, transmission with pinion-crown and chain, safety systems for pressure, vacuum and movement control, squeezing membrane in fabric covered with neutral rubber on the inside and food-graded in the part in contact with the grapes, movement wheels, 1.000 l stainless steel must collection tank with 1” 1/2 valve garolla fitting 50.
Press testing: TUV Rheinland Italia Srl
CE certification
TECHNICAL DATA:
length mt. 3,5
width mt. 1,4
height mt. 1,7
empty weight kg. 1100
number of cargo loading doors 2
cargo loading doors dimensions mt. 0,6x0,4
load capacity: fresh pressed q. 60 / crushed and drained q. 75
PRIMULA 3200
WINE PRESS PRIMULA HL 32
The Europrimula 3200 pneumatic press is made of AISI 304 stainless steel with a 120x120x3 tube frame, 2 mm thick AISI 304 metal grille perforated on 270° with 1.5x20 oblong holes, 16x50 pitch, no.2 reinforced hatch sizes 400x600 with external sliding door, axial load passage d. 90 mm 3" 1/2 stainless steel valve garolla connector 100, stainless steel control panel with PLC programming, selector with 7 customised work programs for each type of grape and load program
BECKER carbon blade compressor with 4 Kw, pneumatic system with 1” solenoid valves and silencers to reduce noise, BONFIGLIOLI geared motor with 1.1 Kw self-braking motor, transmission with pinion-crown and chain, safety systems for pressure, vacuum and movement control, squeezing membrane in fabric covered with neutral rubber on the inside and food-graded in the part in contact with the grapes, movement wheels, 1.200 l stainless steel must collection tank with 1” 1/2 valve garolla fitting 50.
Press testing: TUV Rheinland Italia Srl
CE certification
TECHNICAL DATA:
length mt. 4,3
width mt. 1,4
height mt. 1,7
empty weight kg. 1300
number of cargo loading doors 2
cargo loading doors dimensions mt. 0,6x0,4
load capacity: fresh pressed q. 70 / crushed and drained q. 90

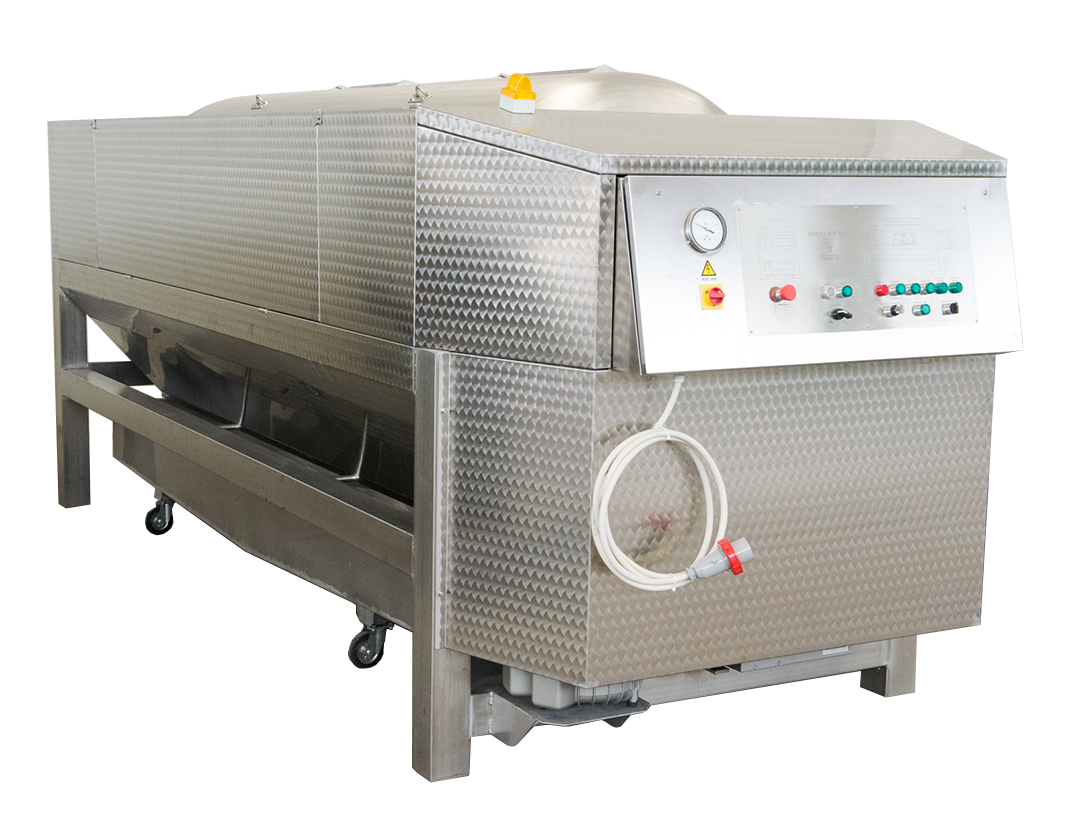

PRIMULA 4200
WINE PRESS PRIMULA HL 42
The Europrimula 4200 pneumatic press is made of AISI 304 stainless steel with a 120x120x3 tube frame, 2,5 mm thick AISI 304 metal grille perforated on 270° with 1.5x20 oblong holes, 16x50 pitch, no.2 reinforced hatch sizes 400x600 with external sliding door, axial load passage d. 90 mm 3" 1/2 stainless steel valve garolla connector 100, stainless steel control panel with PLC programming, selector with 7 customised work programs for each type of grape and load program
BECKER carbon blade compressor with 4 Kw, blower 2" kw. 2,2, pneumatic system with 2” solenoid valves and silencers to reduce noise, BONFIGLIOLI geared motor with 1.1 Kw self-braking motor, transmission with pinion-crown and chain, safety systems for pressure, vacuum and movement control, squeezing membrane in fabric covered with neutral rubber on the inside and food-graded in the part in contact with the grapes, movement wheels, 1.200 l stainless steel must collection tank with 1” 1/2 valve garolla fitting 50.
Press testing: TUV Rheinland Italia Srl
CE certification
TECHNICAL DATA:
length mt. 4,5
width mt. 1,9
height mt. 1,9
empty weight kg. 1600
number of cargo loading doors 2
cargo loading doors dimensions mt. 0,6x0,4
load capacity: fresh pressed q. 100 / crushed and drained q. 120
